The Attach Anywhere, All-In-One, Chain-Able
Sound Bag Power Solution
All In One
Quick Draw
Attach Anywhere
Swappable Cable
Daisy Chain
Tech Specs
ALL IN ONE UNIT
1 Battery input - 4 outputs
A Battery Cup and Power Distribution System in one unit
Powers Multiple Devices
Power distribution with 4 outputs
Small Footprint
Designed for tight places, the BPS is not much larger than the battery itself
Fused I/O
The input fuse is rated for 6A and each output fuse is rated for 3A
Switchable Outputs
The Power switch controls Outputs 2-4 and optionally Output 1
Attach Anywhere
Swappable Clips
Swappable clips allow BPS units to attach to the inside or outside of any Sound Bag
BAG ANCHOR CLIP
Designed to work with any bag with a receiver strap
MOLLE CLIP
Designed to work with on the outside of Ktek and MOLLE bags
MOD-U-LOX STYLE CLIP
Designed to work on the outside of Schatler, Petrol & Protogear Bags
BUDDY LOK STYLE CLIP
Designed to work on the outside of Orca Bags
Daisy Chain
Combine Multiple BPS units With Bridge Mode
By Swapping the jumper to Bridge Mode, Output 4 becomes a daisy chain port to connect multiple BPS units
Redundant Power
By daisy chaining multiple BPS units together, if one battery fails power will not be lost
Hot Swap Batteries
Swap batteries without losing power, even when rolling

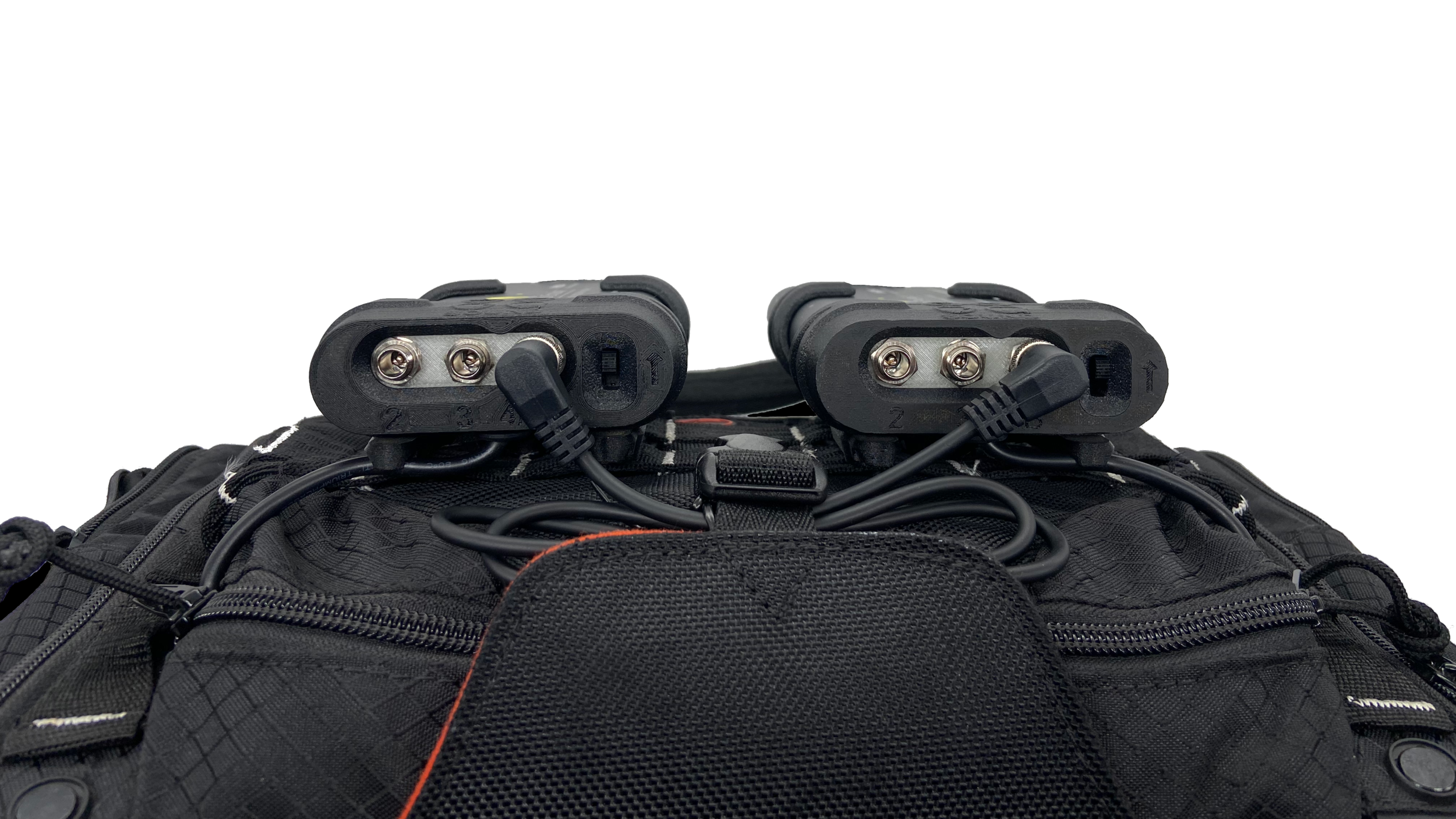

Expand Outputs
Adds additional outputs to power more devices
1 Battery
1 battery can be used to power multiple units
Quick Draw Battery
Easily Changeable Battery
The Battery compartment is designed for quick, no hassle battery swaps.
1 Handed Battery Swap
Battery Tabs guide the battery into place
Works with both sizes
Both large and small smart batteries are supported
Display Always Up
Battery data will always face up
Secure Fit
The BPS holds the battery firmly in place even if the unit is turned upside down
Swappable Cables
Field Serviceable output cable
Output 1 is a hard-lined output cable that can be easily replaced
No Soldering Required
The cable is connected to the board with a Header connector
Battery Telemetry
Output 1 supports 4 Wire battery telemetry
Connectors Avalible
The cable comes with either a Hirose or a TA4f connector.
Tools Included
A 2mm Allen key is provided
TEch Specs
Input: Max 24v, 6A fuse
Output 1: Hard-lined output cable, max 24v, 3A fuse,
Hicon TA4f or optional Hirose 4-pin connector
Outputs 2-4: Output jacks, max 24V, 3A fuses,
2.5mm ID x 5.5mm OD locking DC Jack, compatible with
Switchcraft 761K connector or similar
Bridge mode: 2.5mm x 5.5mm locking DC connector, max 24v, no input fuse. Same as Output 4. Attach ONLY to the Bridge
connector of another COGA Sound Battery Power System (BPS). Do not use with any other battery or power source.
Supported Batteries: Audioroot eSmart Li-98Wh & Li-49Wh
Audioroot eSmart Li-96Neo & Li-48Neo
Inspired Energy NH2054HD34 & ND2054HD34
Remote Audio Hi-Q 98Wh & 48Wh
RRC Power Solutions RRC2054 & RRC2054-2
Sound Devices XL-Smart Battery
